The Focus Atlas has long been the German brand’s dedicated workhorse — a gravel bike explicitly designed for “losing yourself” rather than winning sprints. But with the release of the MY26 Atlas, Focus looks to be sharpening the edges of its adventure platform.

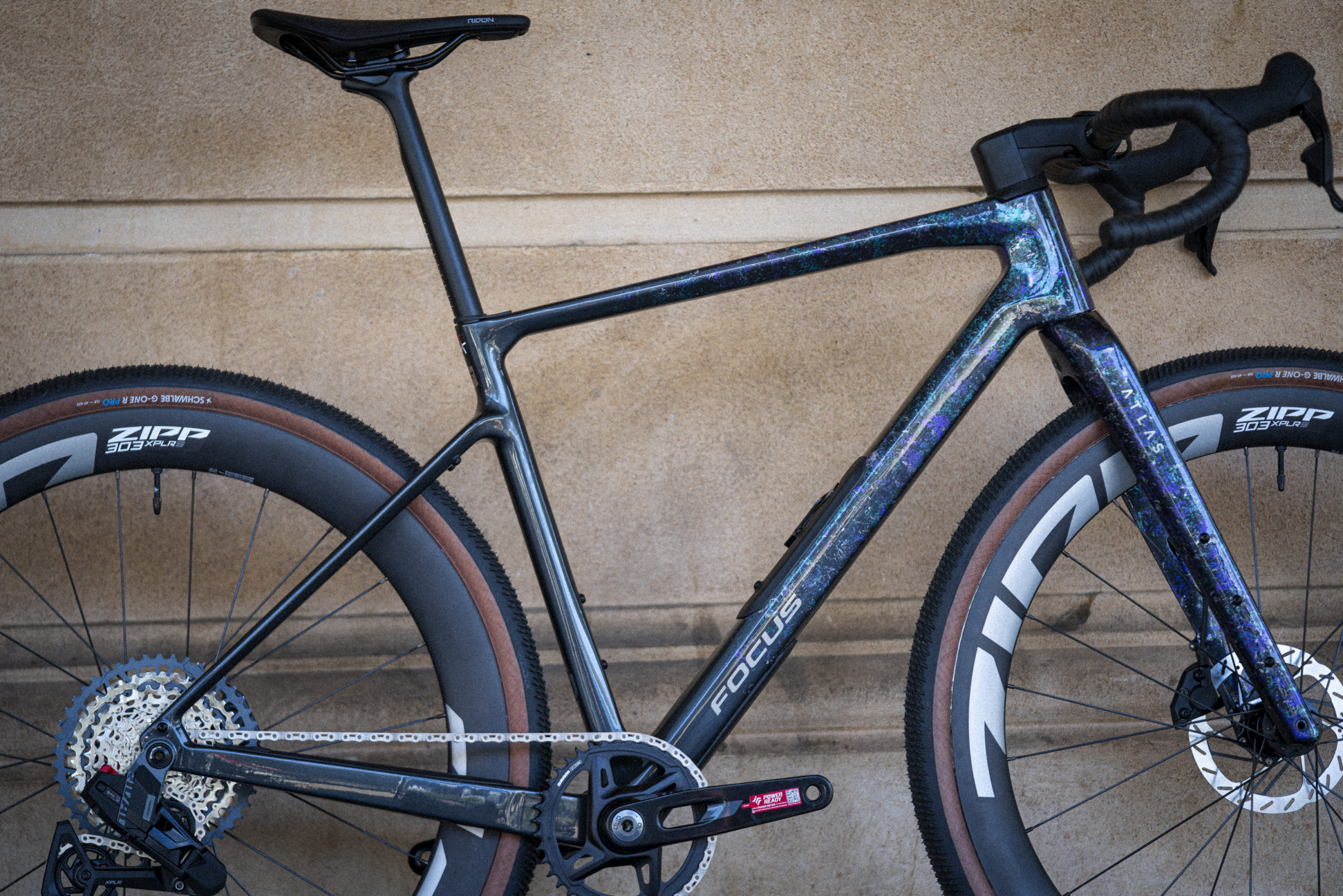

Launching with a new carbon (8 Series) and updated aluminium (6 Series) frame, the new Atlas brings updated geometry, increased integration, and one very welcome change to the hub standards that will have mechanics breathing a sigh of relief.
Here is a breakdown of what’s new on this multi-surface adventure rig.
Related:
- 2023 Focus Atlas Review | A burly gravel bike best suited for big adventures
- Pinarello Grevil F7 Review 2025 | A wavy Italian gravel bike with big capability
- Top 13 Best Gravel Tyres | The best gravel bike tyres ridden & reviewed
Frame Features | Storage and standards

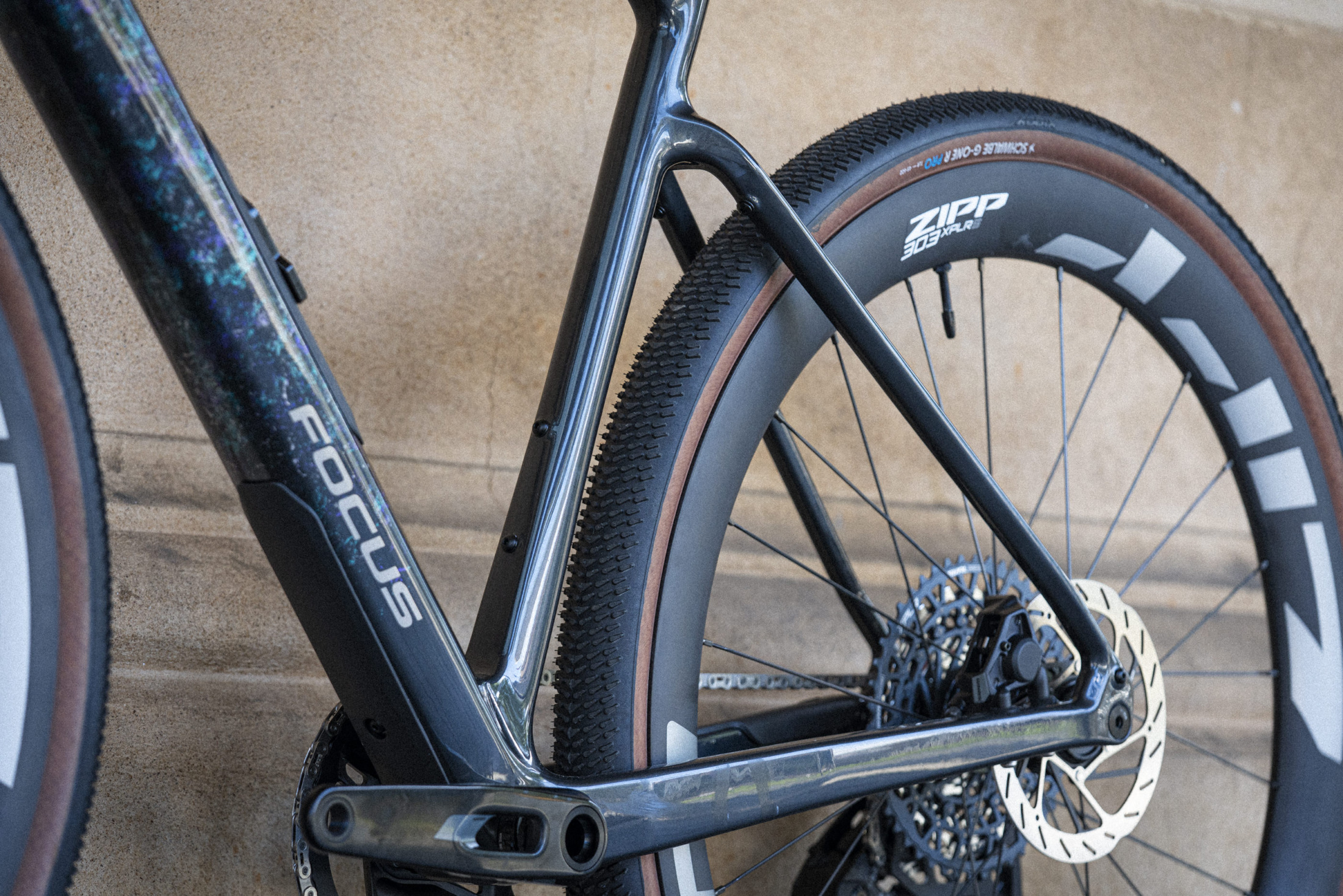

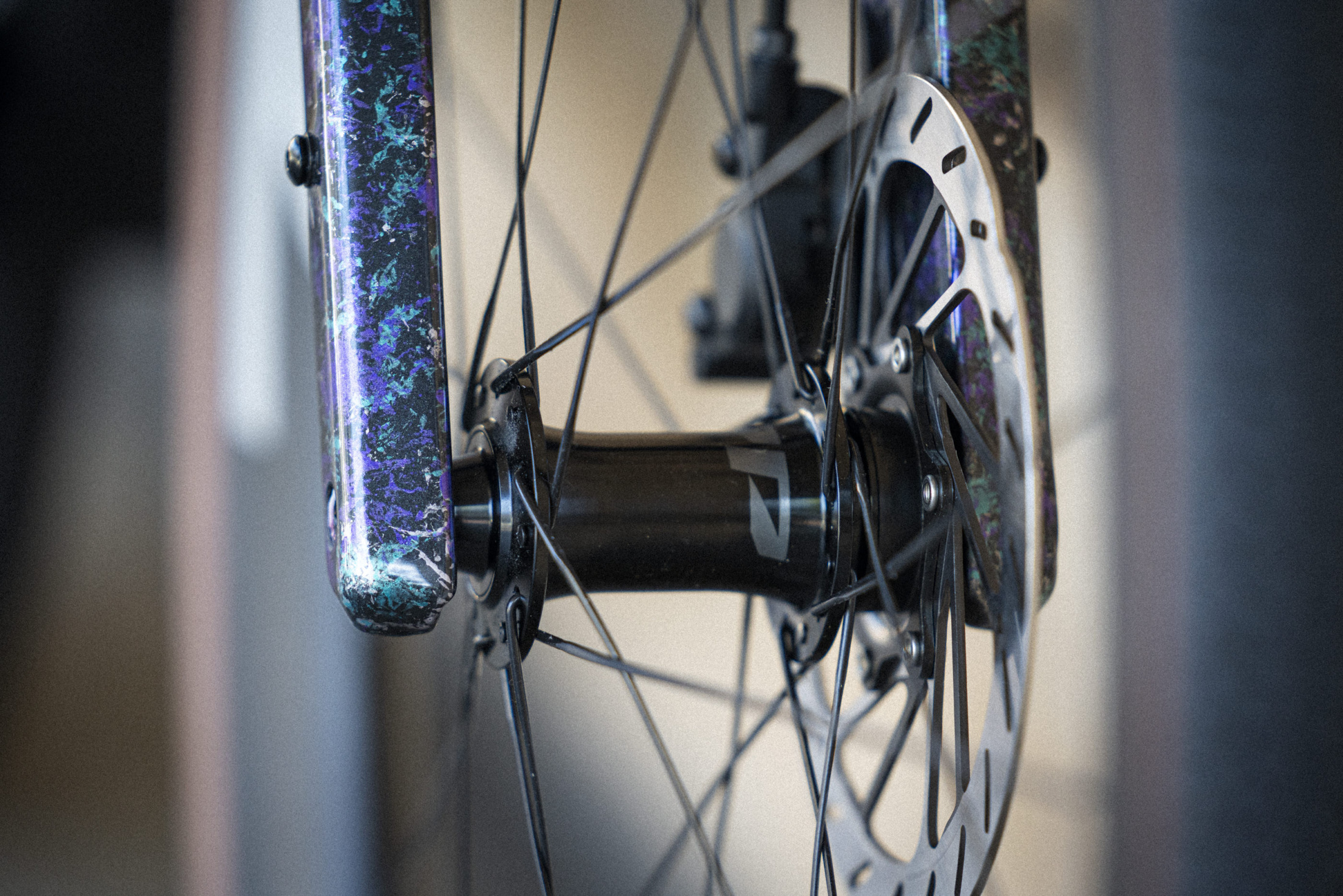

Perhaps the most significant technical update is what is missing. Focus has officially moved away from the “Road Boost” spacing used on previous models. The new Atlas returns to the industry-standard 12 x 100mm front and 12 x 142mm rear axle dimensions. Paired with a standard BSA threaded bottom bracket, this makes wheel upgrades and maintenance significantly easier.

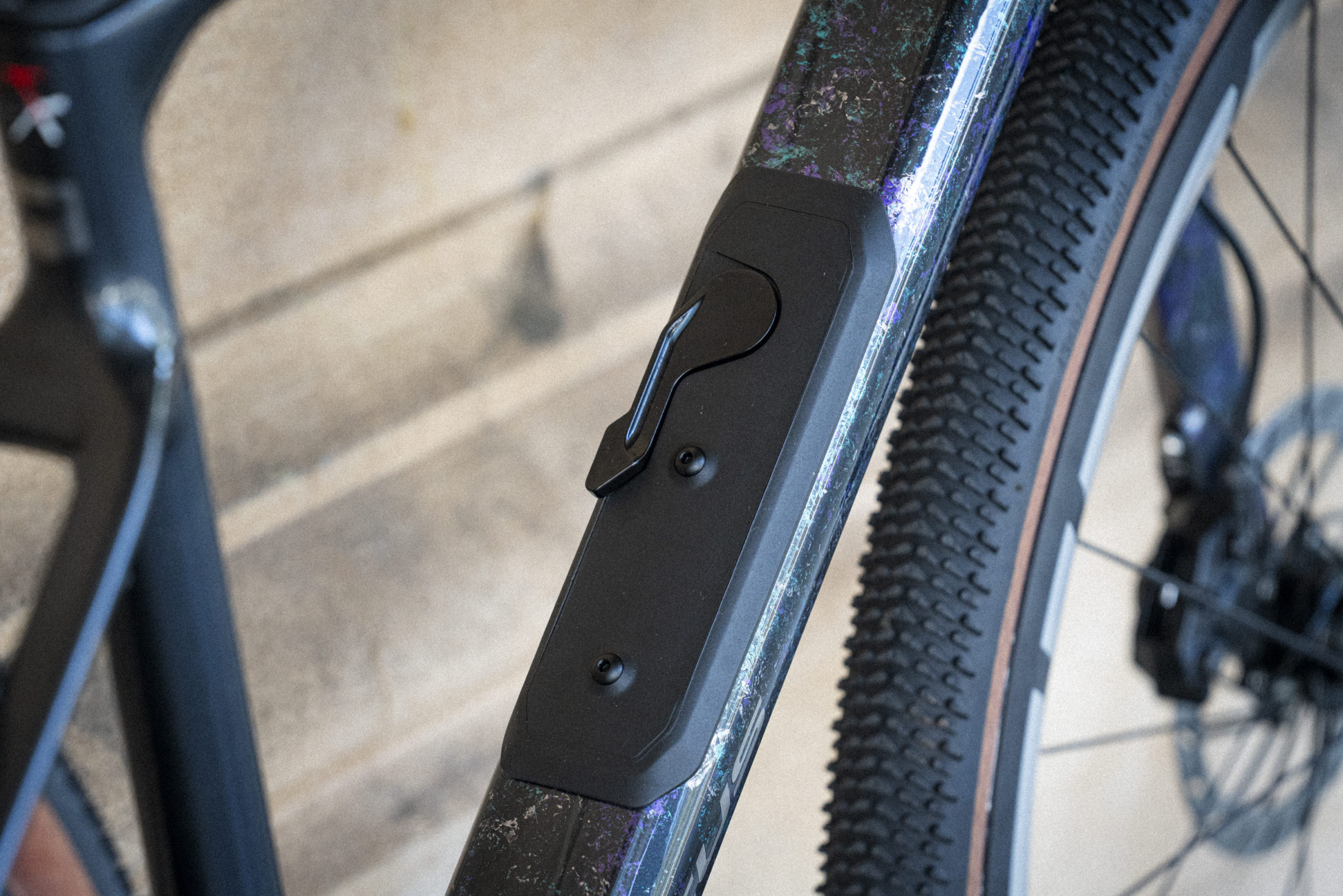

The headline feature for the new carbon 8 Series is the introduction of the Prep Pocket. Following the growing trend of in-frame storage, accessed via a lever on the bottle cage mount, it is designed to house a specific Prep Pack for tools, snacks, or spares.
To many bikepackers’ delight, Focus has retained a high system weight limit of 135kg (rider+luggage) across the range and offers a tonne of mounting points on the fork, frame, and rear stays.

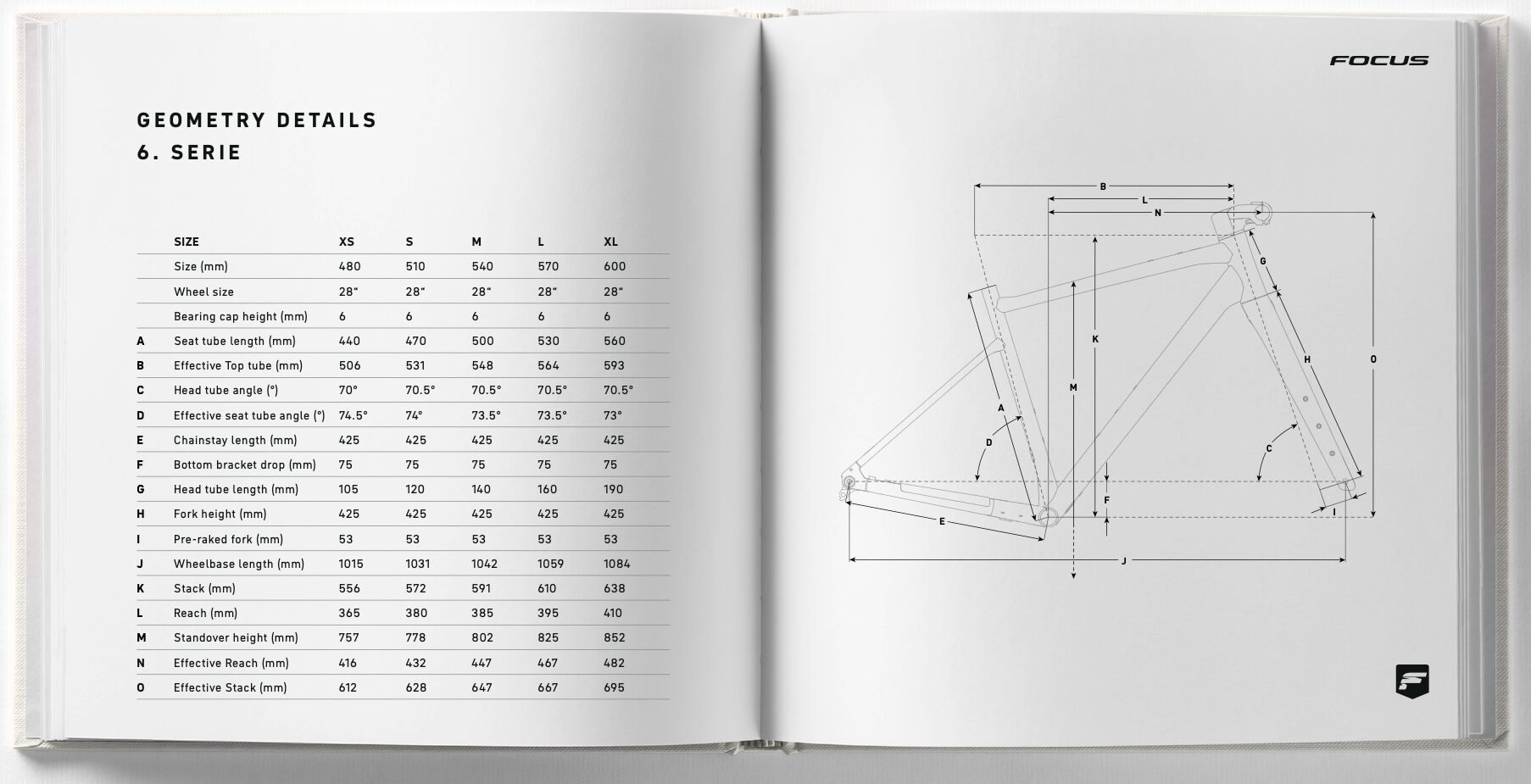

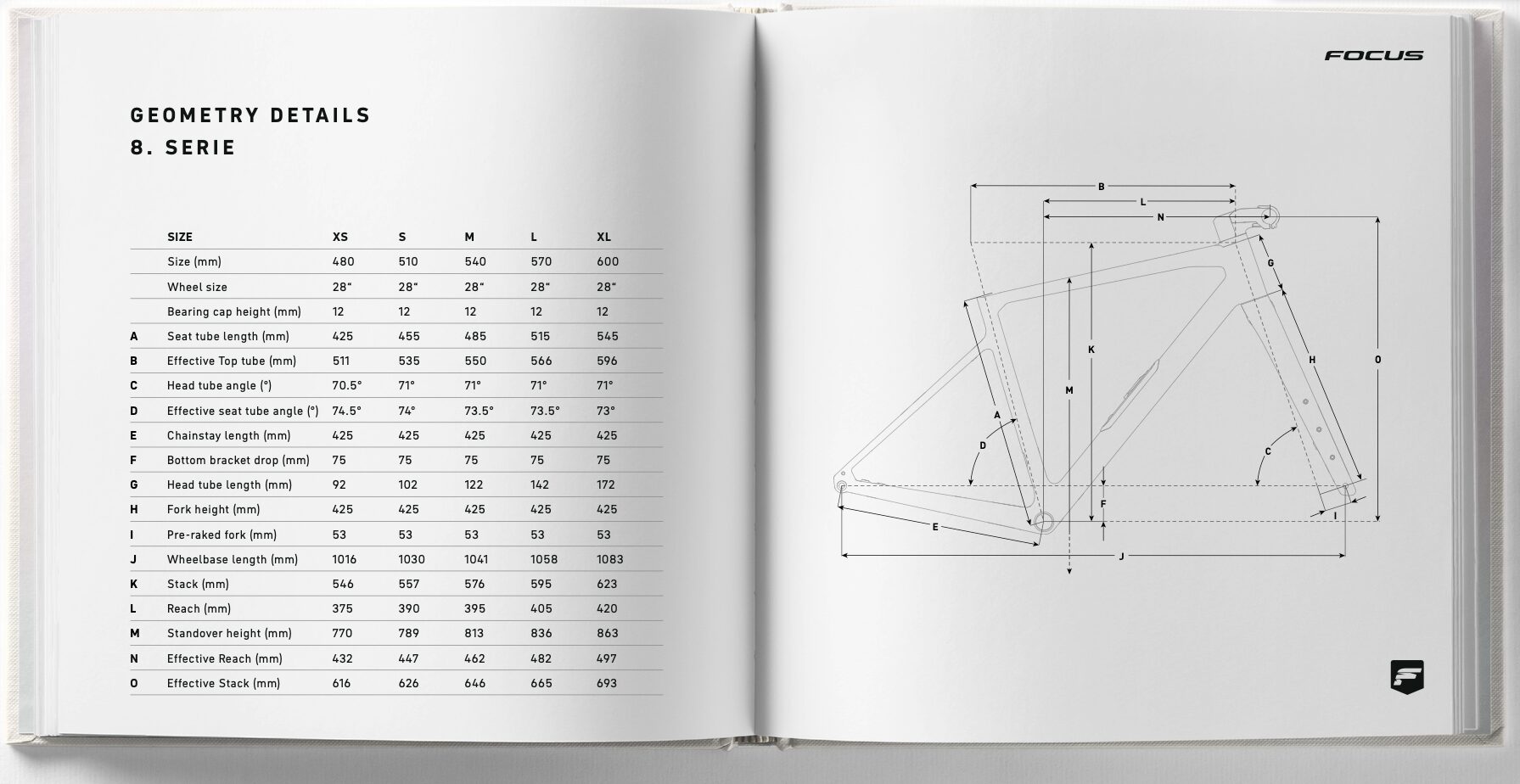

2026 Focus Atlas Geometry | Steeper, shorter, faster
While the new Atlas leans heavily into the “Made to Lose” slogan — encouraging riders to lose track of time and old habits — the geometry charts suggest the bike has actually become a little sharper.
Focus claims to have reinvented the handling for this generation Atlas. The carbon 8 Series features a steeper head angle, shorter wheelbase, and shorter trail compared to its predecessor, aimed at creating a more responsive ride feel, so you can still drop your mates on the descents.
The aluminium 6 Series is not a carbon copy of its carbon compatriot, but it also sees a reduction in wheelbase length and stack height. Both frame materials now utilise shorter seat tubes. By exposing more of the seat post, Focus claims to induce greater flex, improving rider comfort over rough terrain.
Tyre clearance and compatibility

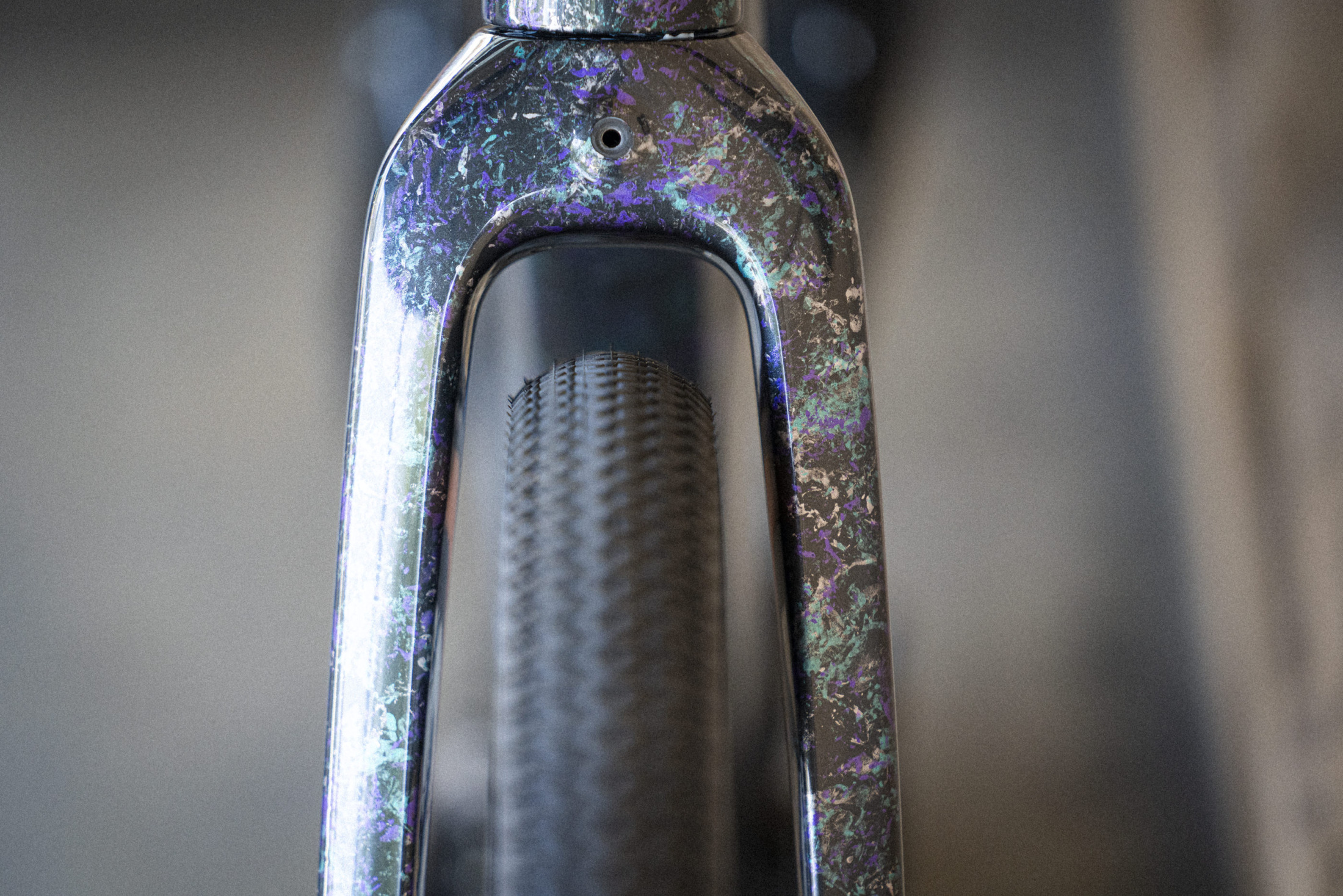

All Atlas models come stock with 45mm tyres and are tubeless-ready out of the box. For those looking for more comfort, the fork offers a cushy 53mm of clearance, but the rear tyre clearance varies slightly by frame material:
- 8 Series (Carbon): Up to 45mm.
- 6 Series (Alloy): Up to 48mm.

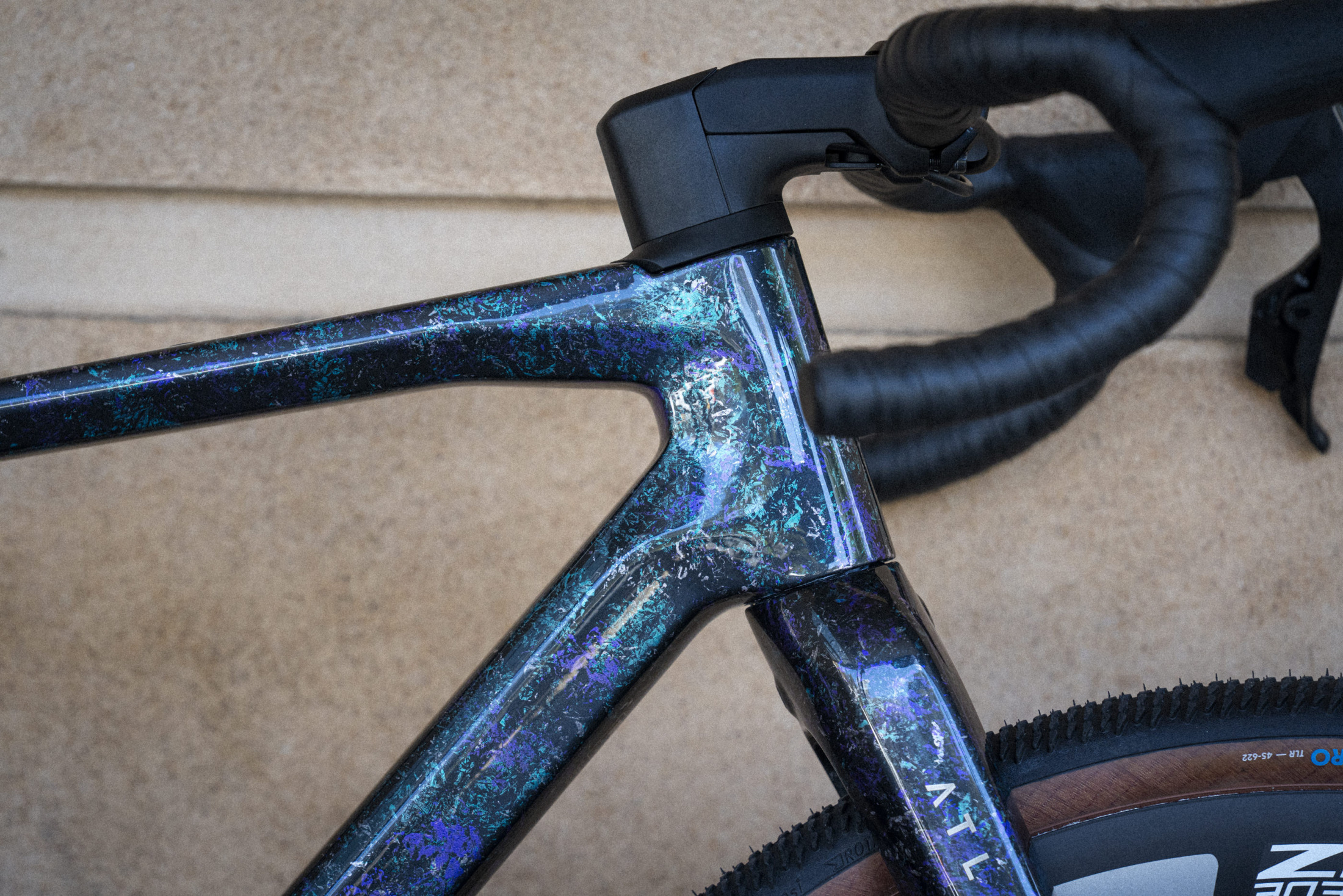

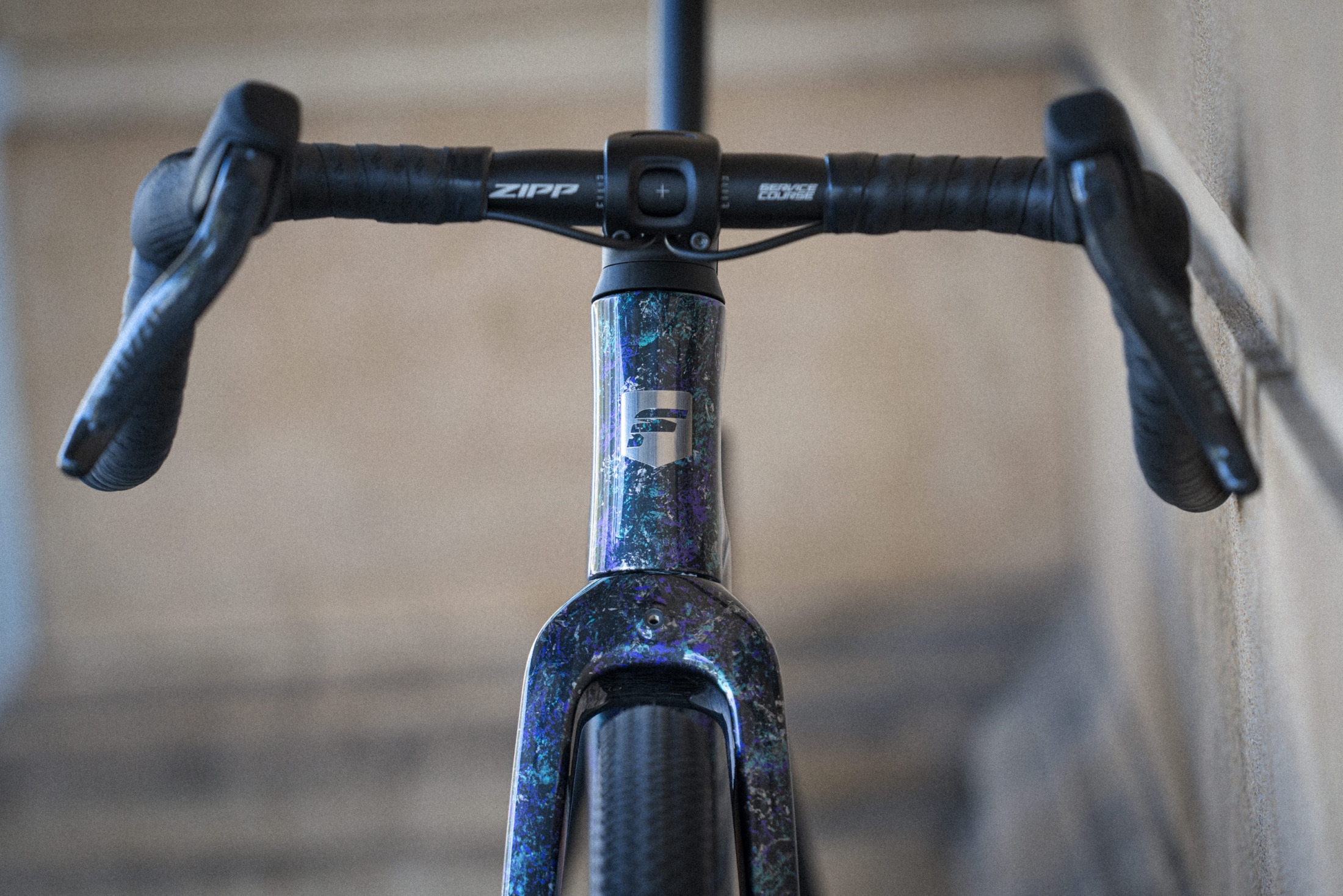

The front end features the C.I.S. 2.0 stem, which routes cables directly from the handlebars into the frame for a clean aesthetic. While the C.I.S. 2.0 uses a cover to hide the cables rather than running them internally through the stem, they still enter the frame through the top headset bearing. You’re also limited with stem options, given the uniquely shaped headset spacers.
Focus is also launching several accessories alongside the bike. The “Adventure Rack” is a rear pannier rack compatible with all models, designed to keep the centre of gravity low.
Up front, there is the new “Hawaii Rack,” a pizza rack capable of carrying up to 5kg — though Focus warns it may be illegal in some parts of Italy.
2026 Focus Atlas pricing and availability
The Focus Atlas offers surprising value for money with the top-end spec, equipped with SRAM Rival XPLR AXS 1×13-speed and Zipp 303 XPLR S Carbon wheels, priced at $6,999 AUD. On the other end of the spectrum, the alloy Atlas 6.7 is priced at $2,399 AUD.
Focus Australia has confirmed it will receive stock in January, and you’ll see bikes land in shops shortly there after. We’ve got an Atlas on the way for review, so stay tuned!

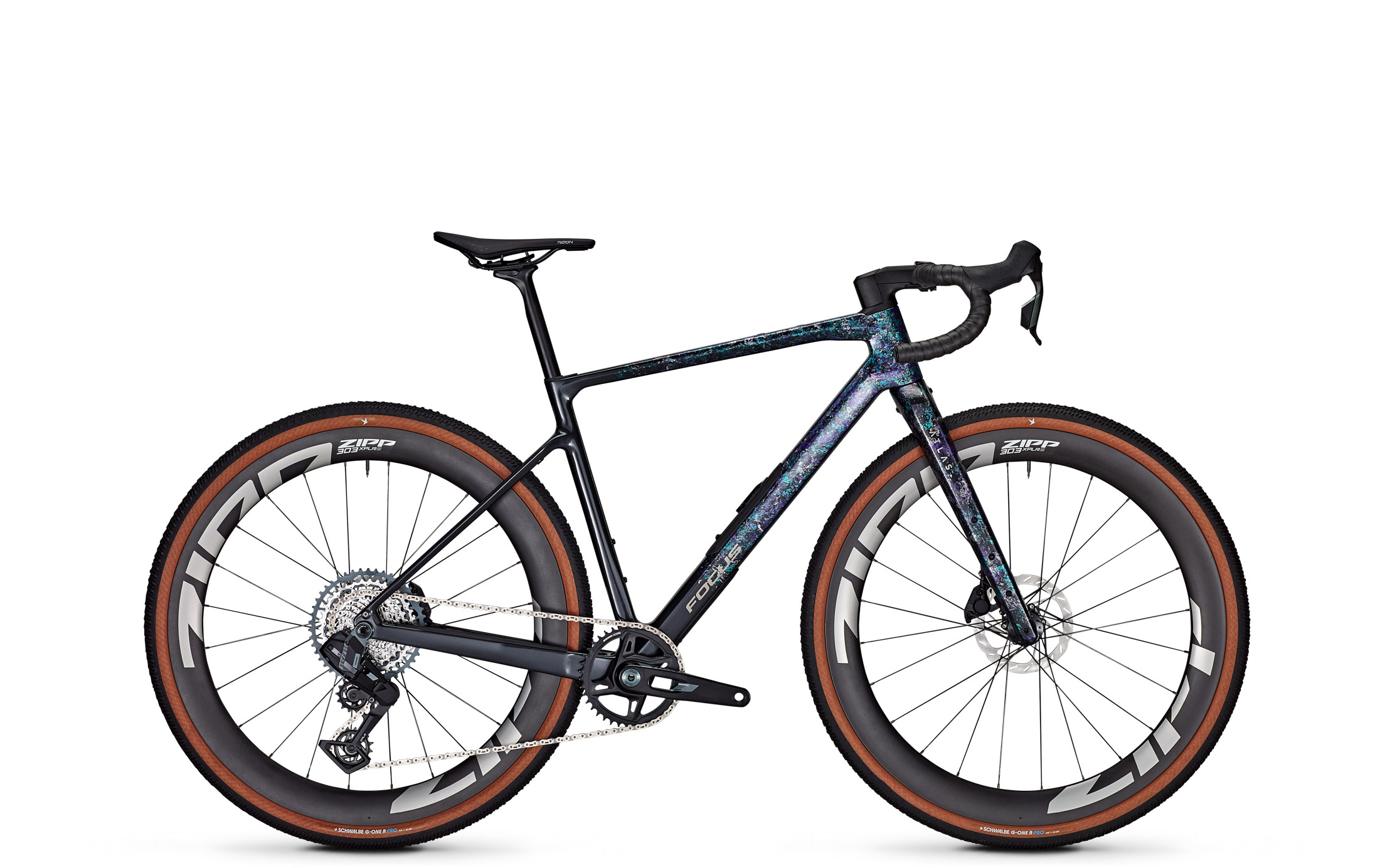

2026 Focus Atlas 8.9
- Frame | Carbon Technology, internal cable routing, Prep Pocket, 12 x 142 mm thru-axle
- Fork | Focus Carbon, 12 x 110xmm thru-axle, 53mm tyre clearance
- Wheels | Zipp 303 XPLR S Carbon, 54mm depth
- Tyres | Schwalbe G-One R Pro, Super Race, Tubeless Ready, 45mm
- Drivetrain | SRAM Rival XPLR AXS 1×13-speed
- Brakes | SRAM Rival E1 Hydraulic Disc
- Bar/Stem | Zipp Service Course SL 70 XPLR / Focus C.I.S. 2.0 Integrated
- Seatpost | Focus Gravel Carbon, 27.2mm
- Claimed Weight | 8.6kg
- RRP | $6,999 AUD

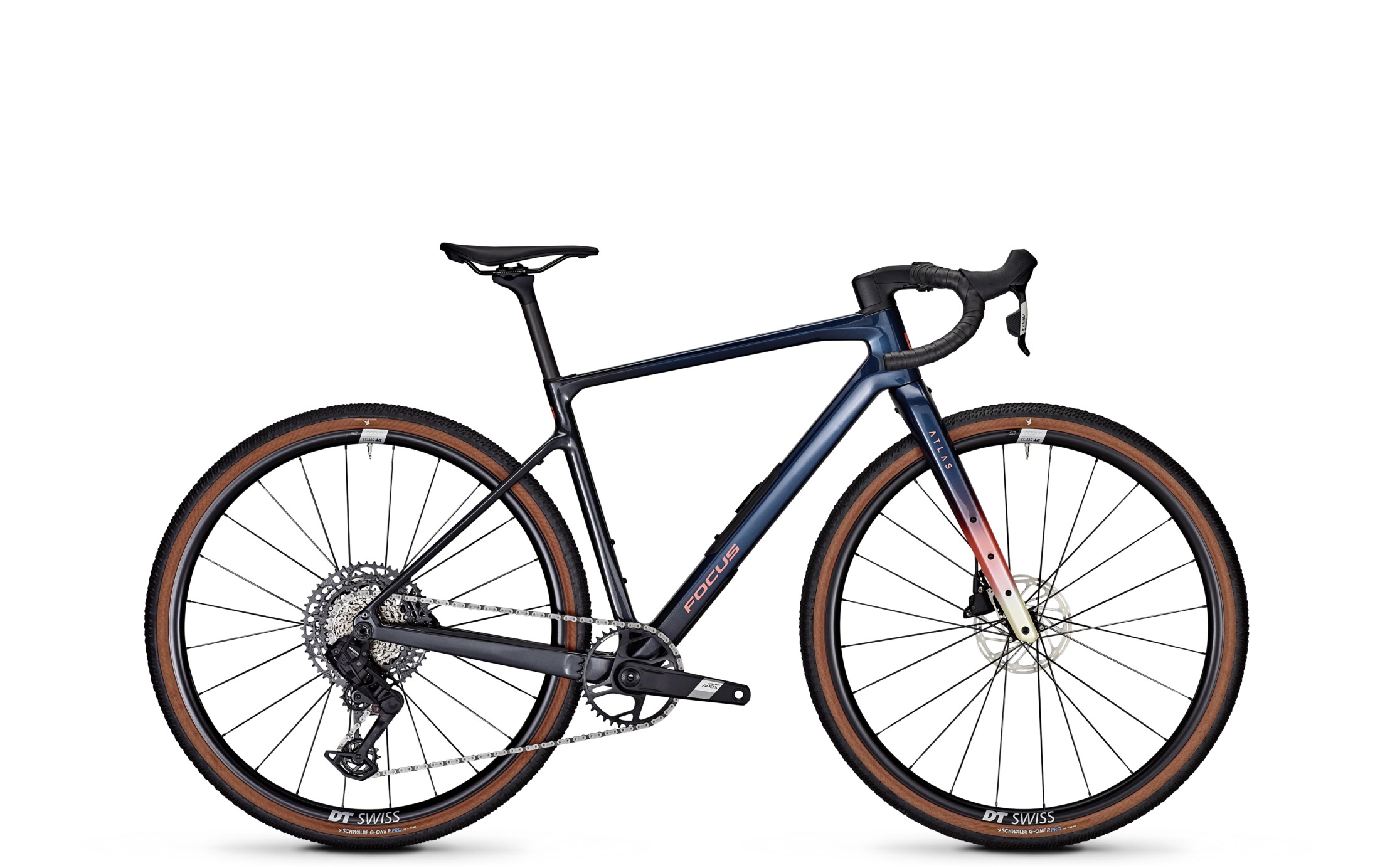

2026 Focus Atlas 8.8
- Frame | Carbon Technology, internal cable routing, Prep Pocket, 12 x 142 mm thru-axle
- Fork | Focus Carbon, 12 x 110xmm thru-axle, 53mm tyre clearance
- Wheels | DT Swiss G 1800 Alloy, 24mm width
- Tyres | Schwalbe G-One R Pro, Super Race, Tubeless Ready, 45mm
- Drivetrain | SRAM Apex AXS / Eagle Transmission 1×12-speed (Mullet)
- Brakes | SRAM Apex Hydraulic Disc
- Bar/Stem | Focus Gravel Bar Alloy / Focus C.I.S. 2.0 Integrated
- Seatpost | Focus Carbon, 27.2mm
- Claimed Weight | 9.5kg
- RRP | $4,999 AUD
2026 Focus Atlas 8.7
- Frame | Carbon Technology, internal cable routing, Prep Pocket, 12 x 142 mm thru-axle
- Fork | Focus Carbon, 12 x 110xmm thru-axle, 53mm tyre clearance
- Wheels | DT Swiss G540 Alloy, 24mm width
- Tyres | Schwalbe G-One R Pro, Super Race, Tubeless Ready, 45mm
- Drivetrain | Shimano GRX 610/820 Mix 2×12-speed
- Brakes | Shimano GRX Hydraulic Disc
- Bar/Stem | Focus Gravel Bar Alloy / Focus C.I.S. 2.0 Integrated
- Seatpost | Focus Carbon, 27.2mm
- Claimed Weight | 9.7kg
- RRP | $3,999 AUD

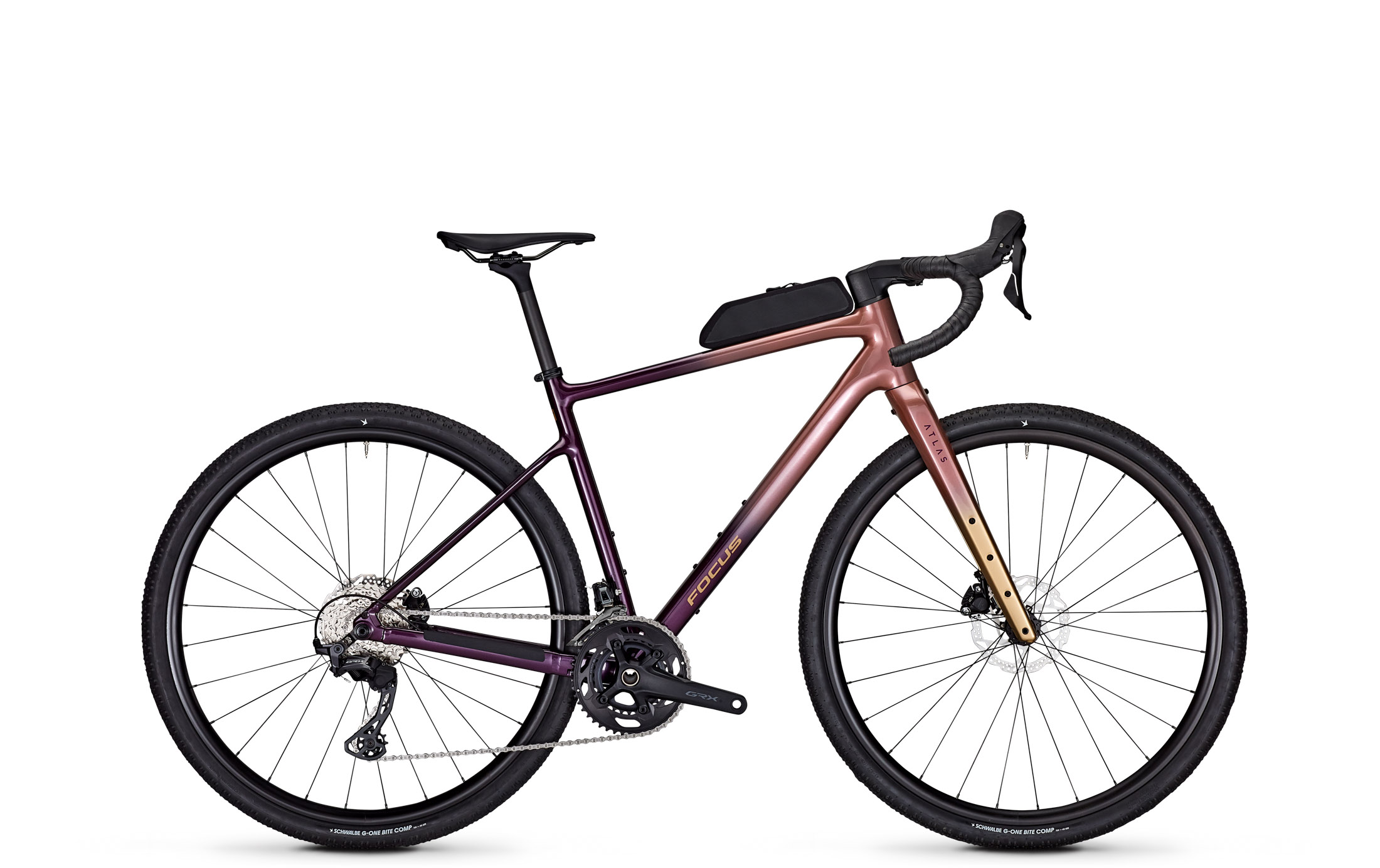

2026 Focus Atlas 6.9
- Frame | 6061 Aluminium, disc, 142×12 mm thru axle, flat mount 160 mm
- Fork | Focus Carbon, 12 x 110xmm thru-axle, 53mm tyre clearance
- Wheels | Rodi Blackjack SL 25, Alloy
- Tyres | Schwalbe G-One Bite, Tubeless Ready, 45mm
- Drivetrain | Shimano GRX 610/820 Mix 2×12-speed
- Brakes | Shimano GRX Hydraulic Disc
- Bar/Stem | Focus Gravel Bar Alloy / Focus C.I.S. 2.0 Integrated
- Seatpost | Focus Alloy, 27.2mm
- Claimed Weight | 10.3kg
- RRP | $2,999 AUD
2026 Focus Atlas 6.7
- Frame | 6061 Aluminium, disc, 142×12 mm thru axle, flat mount 160 mm
- Fork | Focus Carbon, 12 x 110xmm thru-axle, 53mm tyre clearance
- Wheels | Rodi Blackjack SL 25, Alloy
- Tyres | Schwalbe G-One Bite, Tubeless Ready, 45mm
- Drivetrain | Shimano Cues U6000 2×11-speed
- Brakes | Shimano Cues Hydraulic Disc
- Bar/Stem | Focus Gravel Bar Alloy / Focus C.I.S. 2.0 Integrated
- Seatpost | Focus Alloy, 27.2mm
- Claimed Weight | 10.6kg
- RRP | $2,399 AUD
