The inverted fork thing is getting real!
For a long time, inverted forks felt like a fringe category. The Manitou Dorado kept the idea alive, and Intend kept us watching. That’s changed quickly. Fox pulled inverted forks back into the spotlight with the compelling Podium, and now Cane Creek is stepping in with the new Invert Enduro. We haven’t ridden it yet, but it already looks like a mean piece of gear.

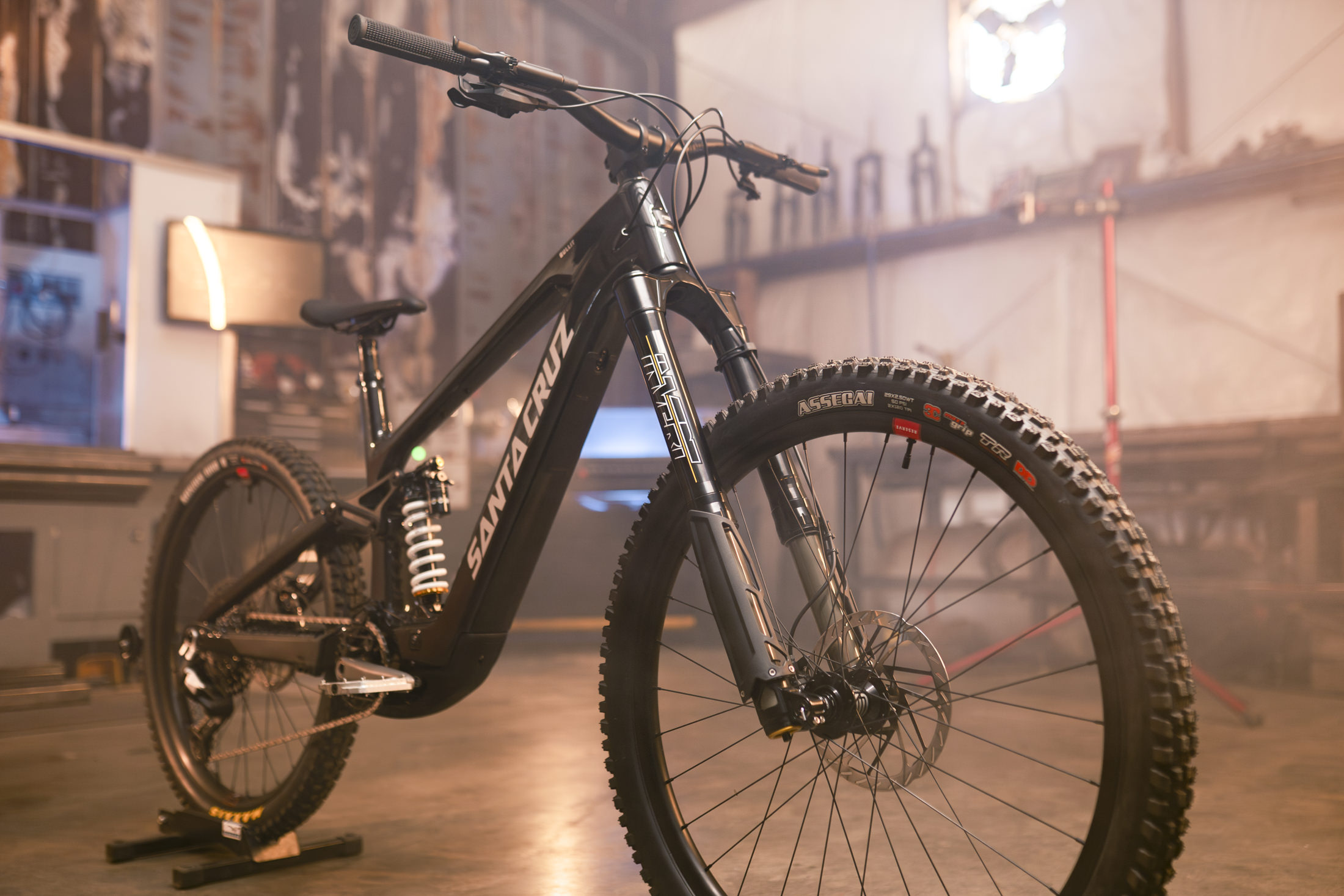

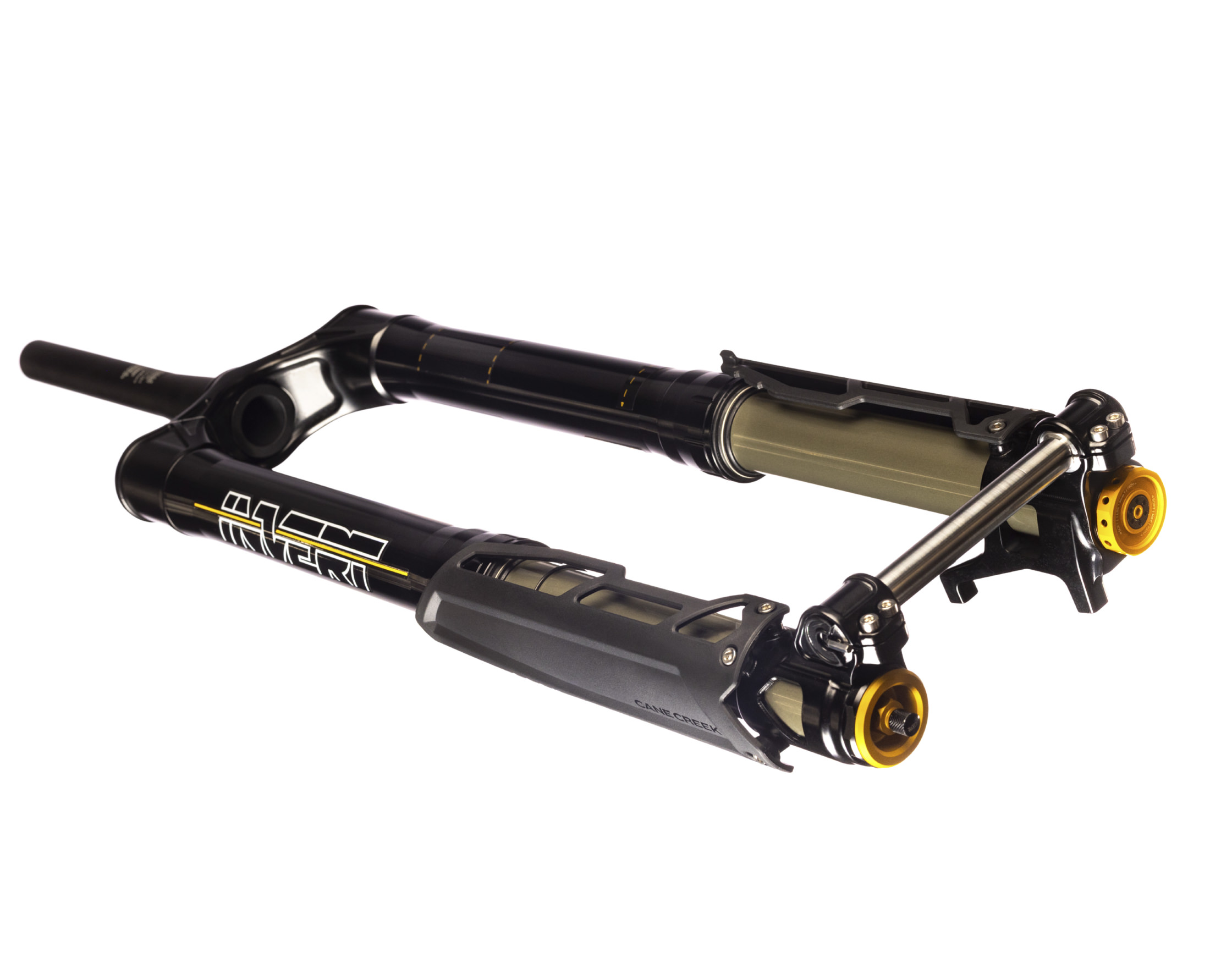

What is the Cane Creek Invert Enduro?

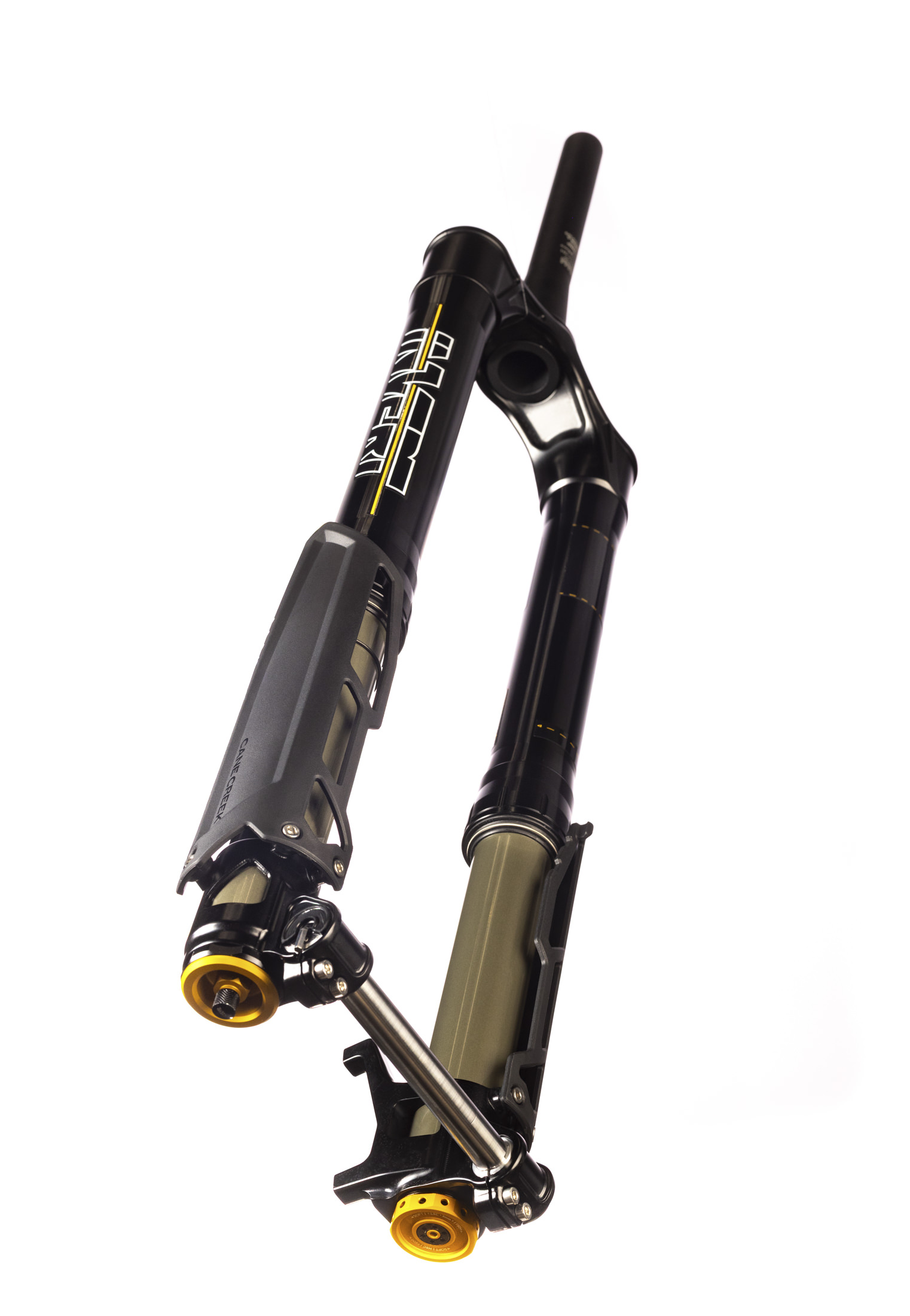

The Invert Enduro is a new single-crown fork designed for long-travel trail, enduro, bike park, and e-MTB use. It comes in 160mm, 170mm, and 180mm travel, uses 45mm upper tubes and 38mm stanchions, air-sprung only. Cane Creek says it has been built to handle the weight and speed of modern e-bikes, too.
Cane Creek Invert Enduro
- Travel | 160mm, 170mm & 180mm
- Wheel Size | 29in only
- Axle | 15x110mm Boost included, 20x110mm Boost optional
- Chassis | 45mm upper tubes, 38mm stanchions
- Damper | Closed-cartridge monotube damper with bladder
- Spring | Air spring only
- Adjustments | HSC, LSC, rebound, air pressure & volume
- Brake Mount | 200mm native post mount
- Tyre Clearance | Up to 29×2.6in
- Weight | 2,770g-2,795g
- Price | $1,599.99 USD, $2,599AUD
Moving the air spring to the non-brake side keeps any pressure release or oil vapour away from the disc rotor.

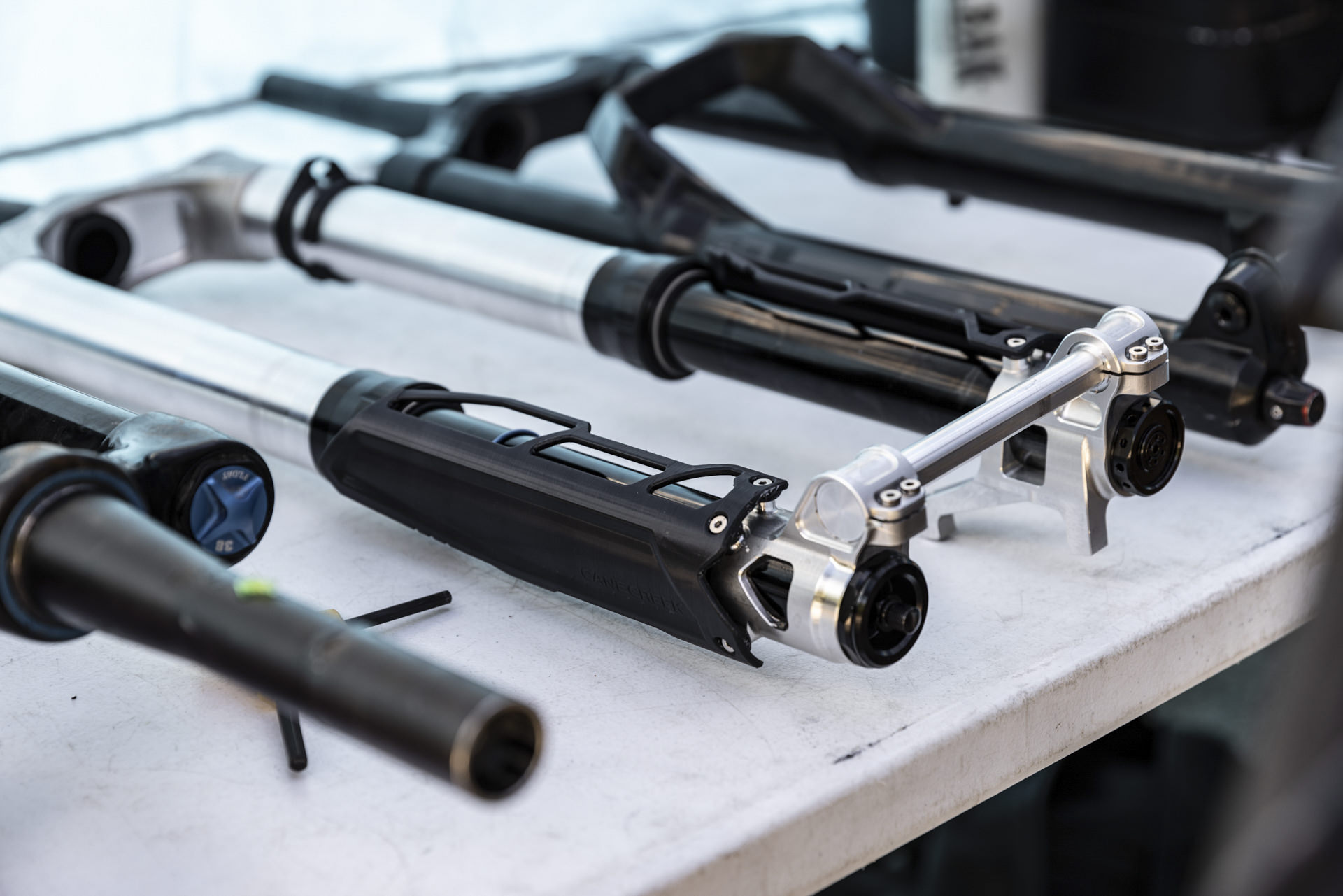

The axle is the big talking point

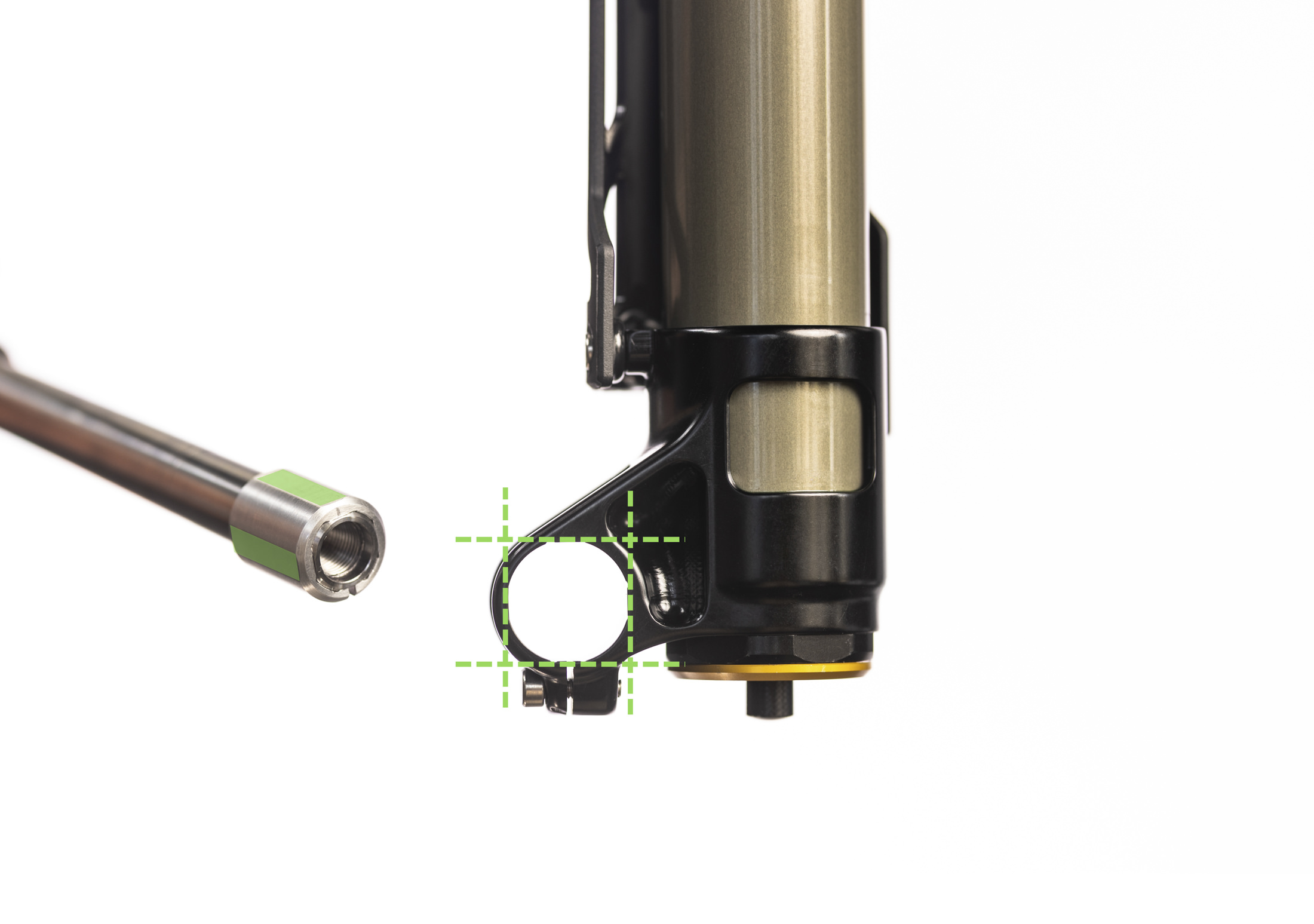

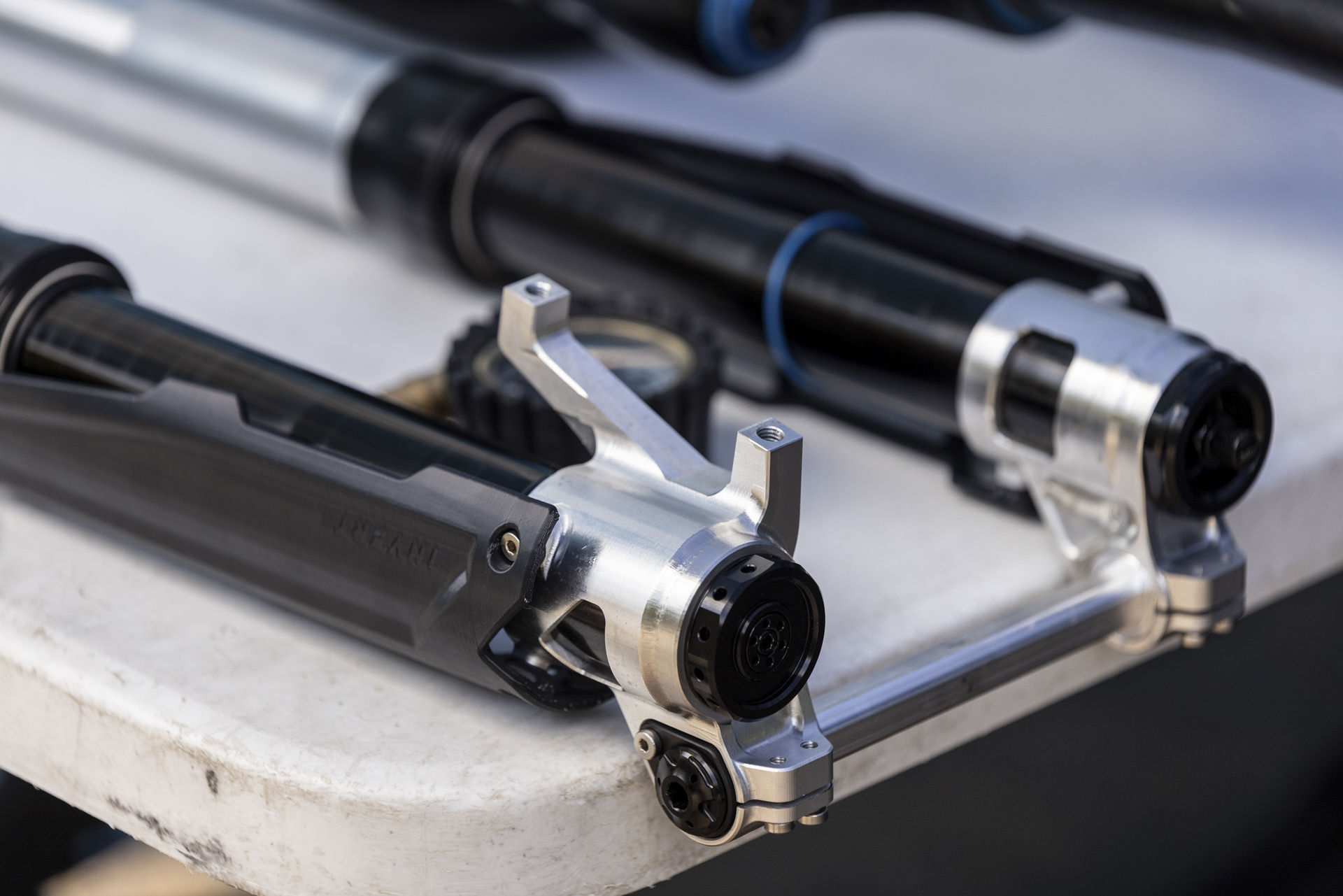

Rather than using a regular round axle, Cane Creek has gone with a keyed design called SquareLoc.
The idea is to better stop the fork legs from twisting around the axle, which is one of the big challenges with inverted forks. In follow-up notes, Cane Creek said the concept came from former Cane Creek engineer Jim Rathburn, who had history with Manitou and the Dorado. With the old Manitou patent expired, Cane Creek has brought that idea across here.

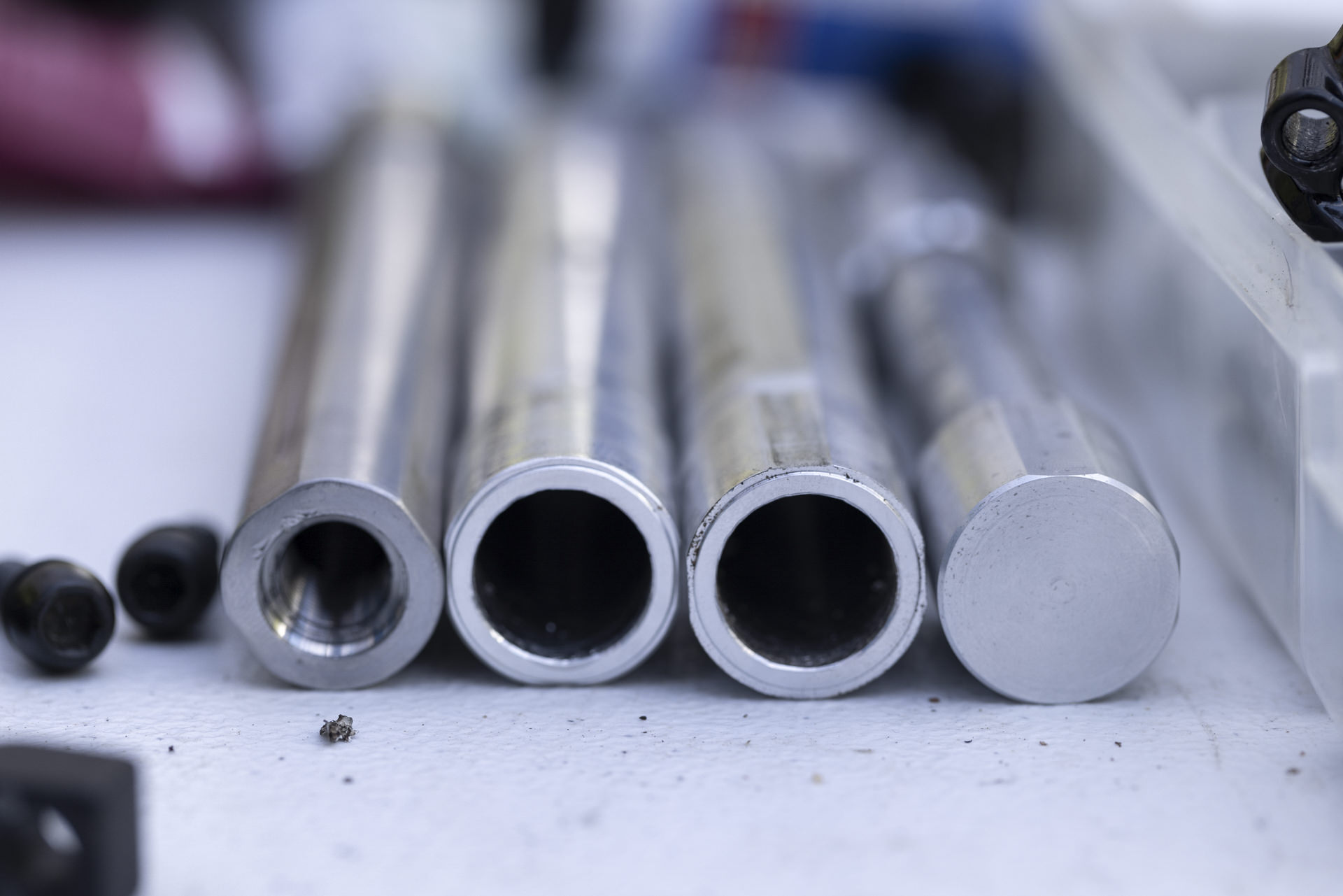

Cane Creek also says it tested other inverted forks with round axles and found they could slip under load. That led to the keyed design, along with the use of 17-4 pre-hardened stainless steel for both the 15mm and 20mm axles.
A different answer to the stiffness question
Cane Creek claims the Invert Enduro is 17% stiffer torsionally than other inverted single-crown forks with the stock 15mm axle, and 42% stiffer with the optional 20mm axle. In its launch material, it compares those numbers directly to the Fox Podium.
That’s what makes this fork interesting. A lot of the current talk about inverted forks has focused on the ride feel that comes from the layout itself. More compliance, less binding, wetter seals, better tracking. Cane Creek seems to agree with all of that, but it has clearly gone after front-end control in a harder way through the axle.
Still chasing the usual inverted fork benefits
Cane Creek says the Invert Enduro is all about smoothness and traction.
Its argument is the usual inverted one: bigger tubes up top, bushings closer to the axle, less bind through the stroke, and more freedom for the front wheel to stay planted in rough terrain. That should sound familiar to anyone who has been following the recent inverted fork chat.
Cane Creek also says the fork has 133mm of bushing overlap, compared to 128mm on their telescopic Helm MKII, 120mm on the 2026 Fox 38, and 140mm on the new 2027 Fox 38.
Familiar damper, new air spring, leg guards and clearance
Inside, Cane Creek has kept things fairly sensible.

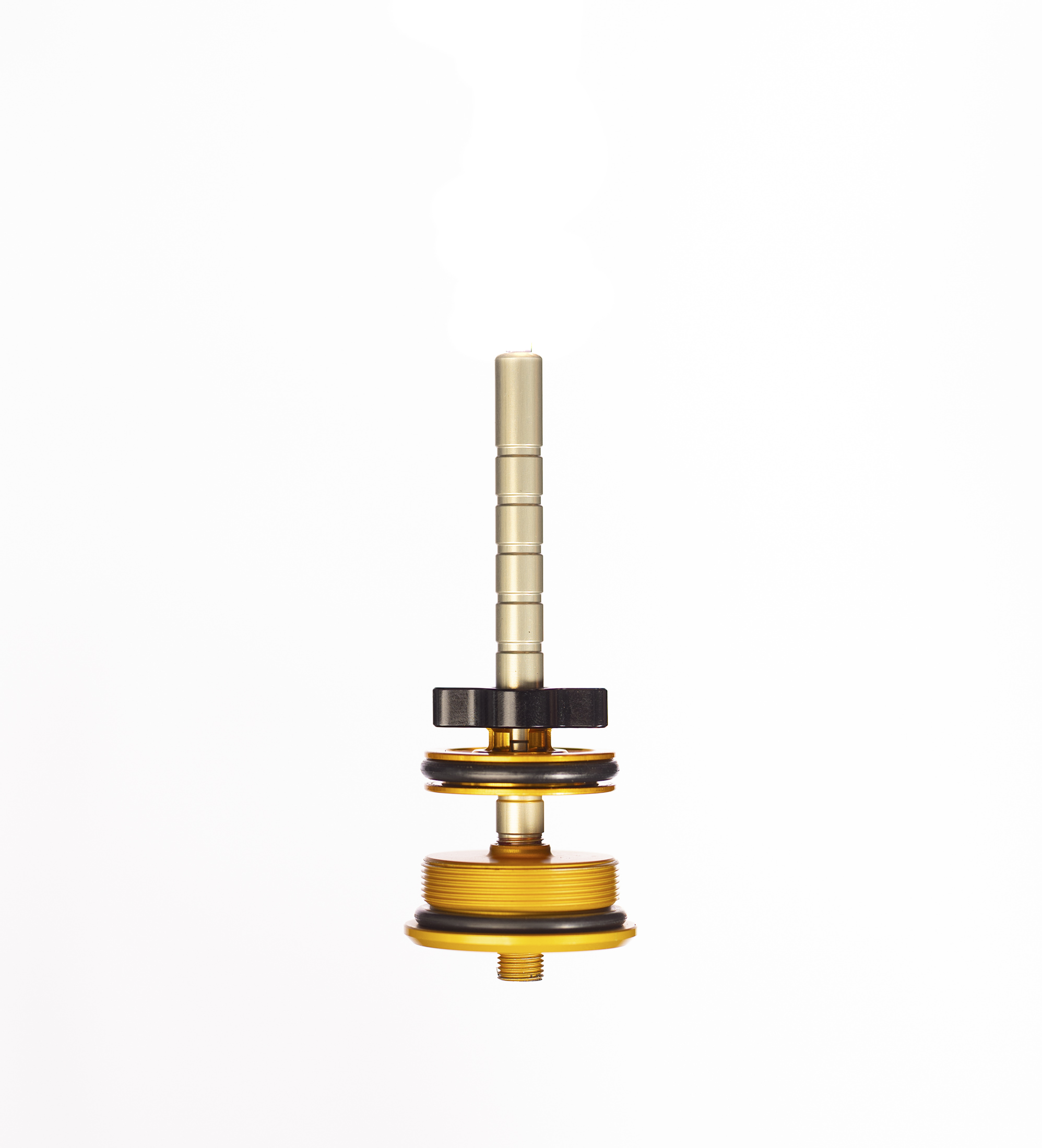

The damper carries over from the Helm MKII, using a closed-cartridge monotube bladder design with high and low speed compression and a single rebound adjuster. The air spring is new though, moving to a self-equalising charge-port design rather than the manual equalisation system used in the Helm. It also keeps Cane Creek’s onboard volume adjustment system.
Like the Helm, the Invert Enduro uses Cane Creek’s onboard volume adjustment system, so riders can change fork progression without adding or removing separate volume spacers. That part stays true to the Helm. What’s changed is the air spring itself, with the Invert Enduro moving to a new self-equalising charge-port design instead of the Helm’s manual positive and negative equalisation system. Cane Creek says that makes setup simpler while also improving small-bump sensitivity.
The air spring has been moved to the non-brake side, so any air pressure release or oil vapour is kept away from the disc rotor. Clever, and kind of obvious once you think about it.

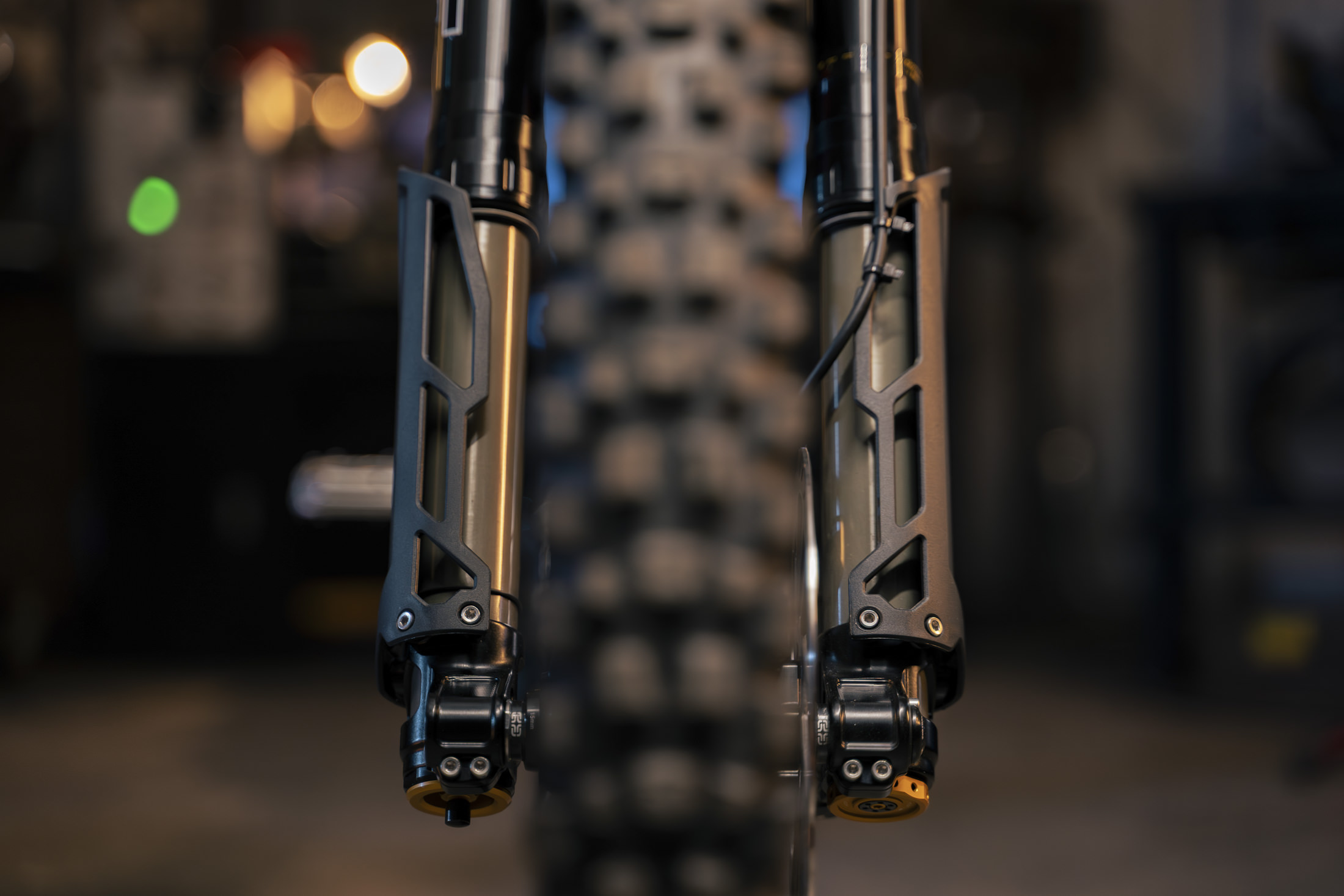

The Invert Enduro is 29in only, clears up to a 29×2.6in tyre, uses a 200mm native post mount, and comes with SideSwipe Guards that sit to the side rather than facing forward. Cane Creek says that better reflects where mountain bike forks actually get damaged. There are also bleed screws, sag marks on the guards, and a new ForkTuner app to help with setup, which is launching at the same time.
First thoughts
The Invert Enduro still chases the same core benefits that have made inverted forks exciting again, but it gets there with its own ideas. The keyed axle is the obvious one, and it’s a pretty interesting answer to one of the biggest question marks around this style of fork. The price sounds appealing compared to the Podium, and the 15 or 20mm front hub compatibility will make this fork a more logical upgrade.
We haven’t ridden it yet, but it looks super cool, the machining looks great, and it feels like another proper step forward for the inverted fork category. Keen as!
